Introduction:：

The working principle is broken flesh, juice, skin into the hopper into the screw through the juicer, the spiral direction along the bottom diameter of feed residue exports gradually increased and decreased pitch, when the material is the propeller, the cavity volume due to narrow spiral Form of press materials. Spiral direction of rotation of the spindle into the hopper from the direction of looking to the slag tank for the clockwise direction. Adding raw materials into the hopper, the advance in helical under pressure, squeeze the juice through the filter into the bottom of the device Sheng juice, and waste through the spiral and conical part of the regulator of the ring gap between the discharge, transfer Pressure head along the axis of movement to adjust the size of the gap.

For clockwise Change the size of the gap (a residue from the device into the hopper to the trough depends handwheel bearing, the regulator head to the left, the gap is narrowing, the gap becomes larger and vice versa.), Adjusting the resistance of the slag, slag rate can change, However, if the gap is too small, in the strong compression, some slag particles and the juice is squeezed out together through the filter, Although the juice increased, but the relative decline in the quality of juice, the size of the gap depending on the user specific process requirements should be determined. Juice and residue so as to achieve the purpose of automatic separation.



Advantage:：

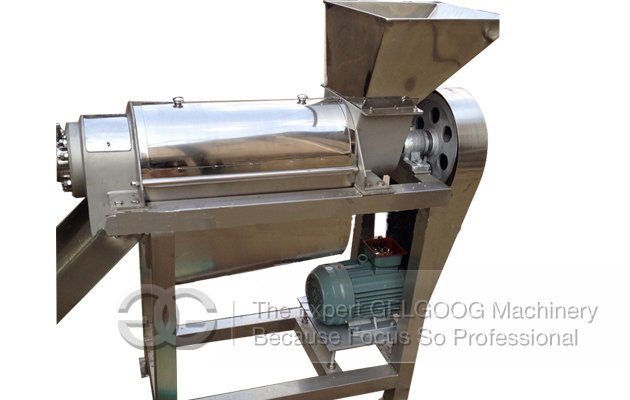

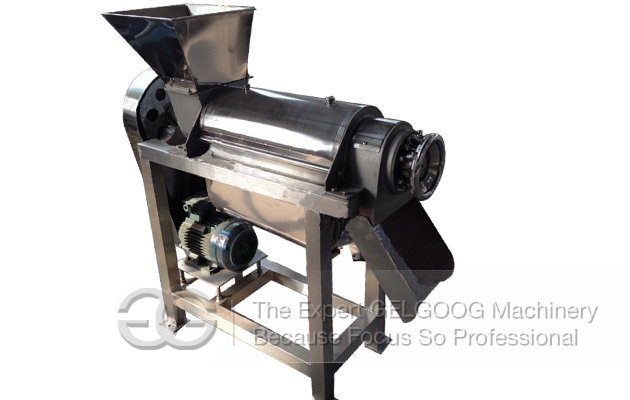

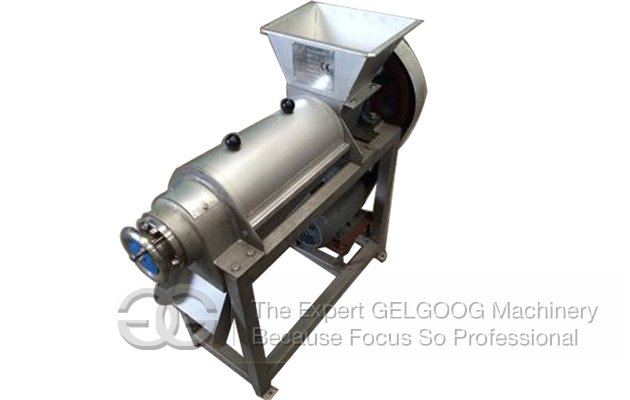

Sprial Fruit Juice Extracting Machine can press juice from fruits such as tomato, pine- apple, apple orange etc. It is full automatic, you just need to put the clean fruits into the machine, then it can make fruit juice. And it combined the function of breaking fruit and screw juicer .It can remove the residues by itself. Stainless Steel material of fruit touching part. Extracted juices Automatically separated from waste. This Juice extractor machine is used by spiral propelling to extract broken fruit into juice, to fulfill automatically separate juice and dreg the machine special to make apple juice or cider. The Juice extractor machine also is suitable to juicing pear and pineapple etc .Pome fruit after crushed the juicing rate could be adjusted by end handwheel. if for make vegatable juice, just use  linear spiral extruder  for extracting the dreg discharge from outlet  and speparate from the juice automatically.
