Introduction:

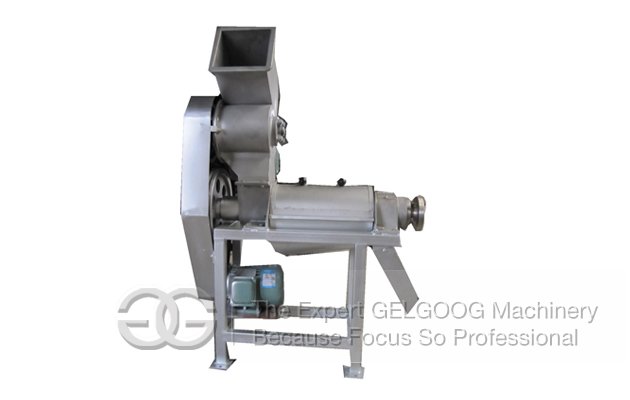

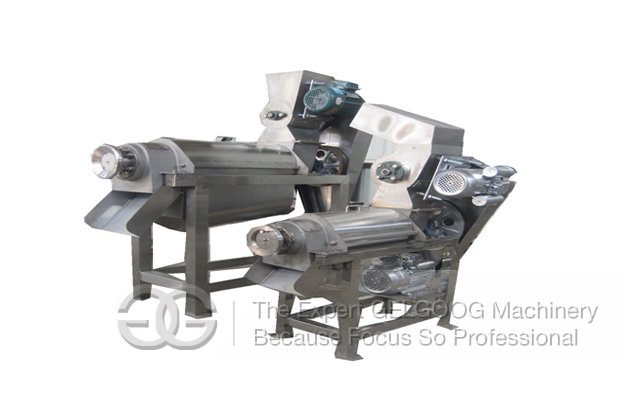

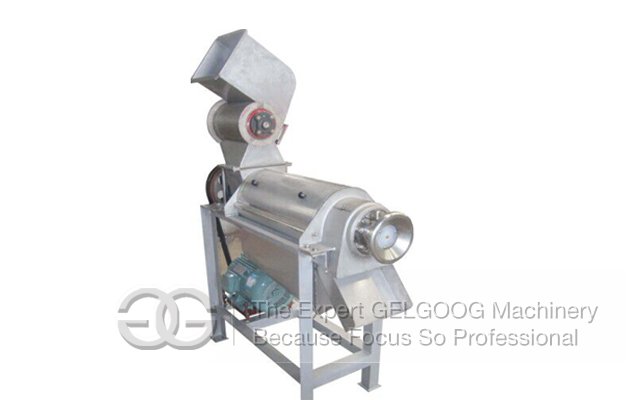

Structure: this equipment is mainly consist of the crushing equipment in the feed hopper, front supporting base, screw, filter screen, juice device, back base, slag spout and so on.



1.The machine is mainly used toextract fruit and vegetable juices. The main components of the equipment is spiral, which increases gradually along the material residue outlet direction while the screw pitch reduces gradually. When the materials are pushed in by the spiral, due to the volume contraction of the spiral cavity, the materials are extracted.



2.Spiral juicer combined the function of breaking fruit and screw juicer,it can remove the residues itself.



Feather:

1.Screen bore diameter:0.6mm; completely automatic machine

2.Spiral juice crusher and extractor have function both crushing all different kinds of fruit and extracting juice. Such as tomato, apple, orange, pineapple, spinach，strawberry and so on;

3. Slag discharging and juicing separate automatically.

4. High juice making rate, make full usage of the raw material

5. The machine is small, easy to operate and move.
